SC - More Activities

Foundry v13-v14System D&D 5eFree

SC - More Activities

Overview

SC - More Activities extends the native D&D 5e activity system in Foundry VTT. It does not replace the standard dnd5e activity workflow. It adds new activity types, a Shattered Codex-owned registration layer, a grouped activity creation dialog, GM-facing diagnostics, and explicit migration tools for worlds moving away from the legacy more-activities module.

The module is built for two different jobs:

GMs who want more activity types without maintaining custom patches
module authors who want to register custom dnd5e activity types through a stable public API

At release, the module ships with 11 built-in SC activity types and a registry flow that can also expose third-party activity types in the same creation UI.

Installation

In Foundry VTT, open Add-on Modules.
Choose Install Module.
Paste this manifest URL:

code

https://github.com/Shattered-Codex/sc-more-activities/releases/latest/download/module.json

Install the module.
Enable SC - More Activities in your world.
Install and enable libWrapper if you want the recommended compatibility layer.

Compatibility:

Foundry VTT v13 to v14
system: dnd5e
dnd5e compatibility declared in module.json: minimum 5.0.0, verified 5.3.0
localization: English and Brazilian Portuguese

Important behavior:

the module exits early outside dnd5e worlds
native dnd5e activities remain available
the module relies on items and sheets that already support the dnd5e activity workflow

What It Adds

11 built-in Shattered Codex activity types for automation, support, progression, inventory, and canvas workflows
a public registration hook and API for Shattered Codex modules and third-party modules

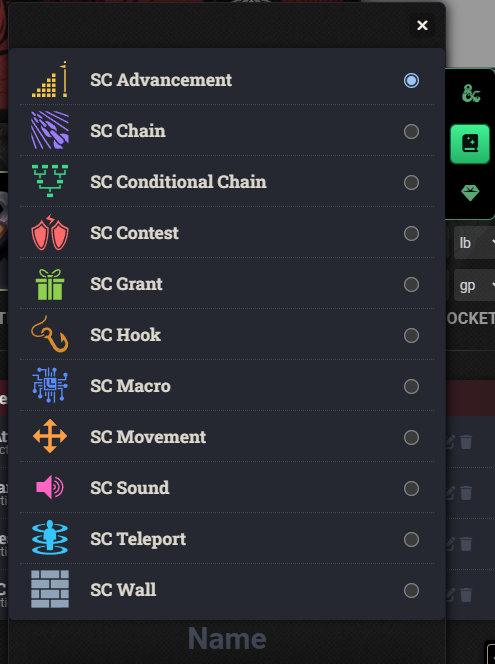

a grouped activity creation dialog that separates D&D 5e, Shattered Codex, and External activity groups

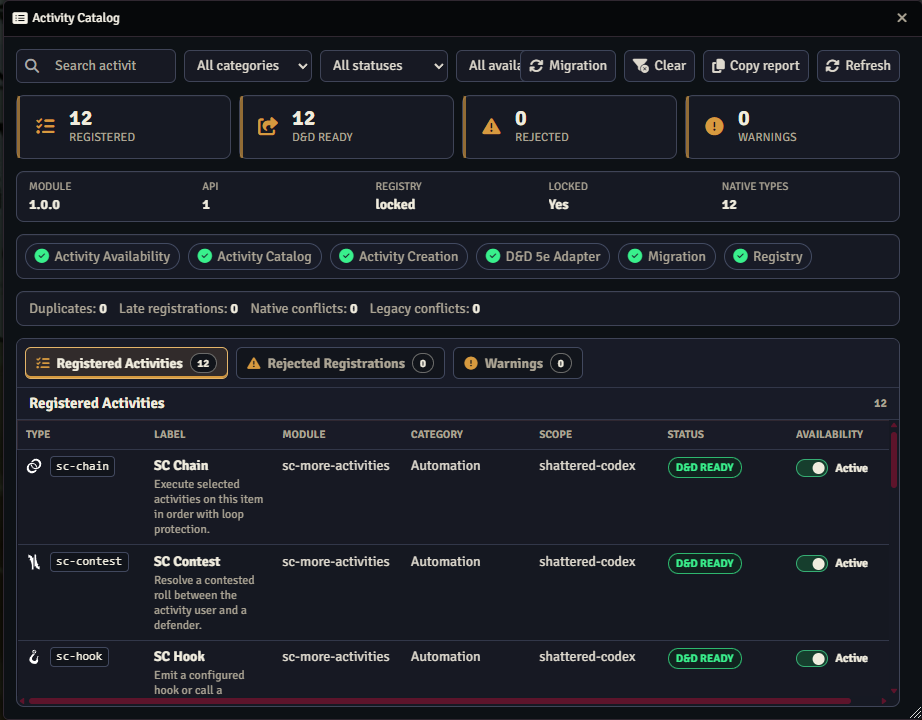

a GM Activity Catalog with diagnostics, filters, and enable or disable controls

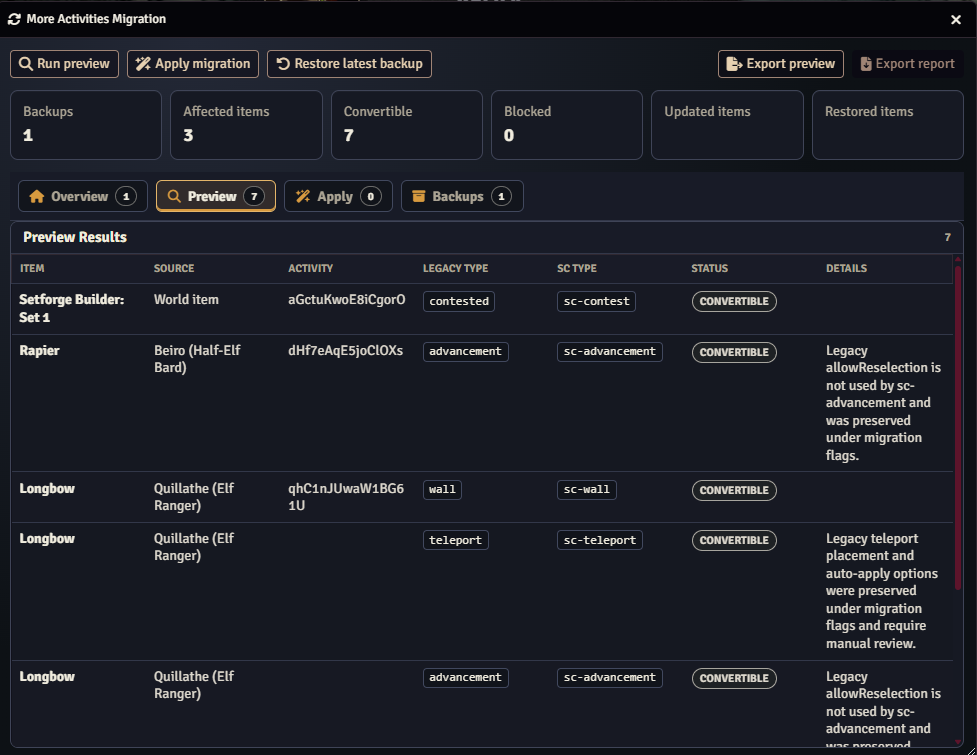

explicit migration tools for legacy more-activities activity data

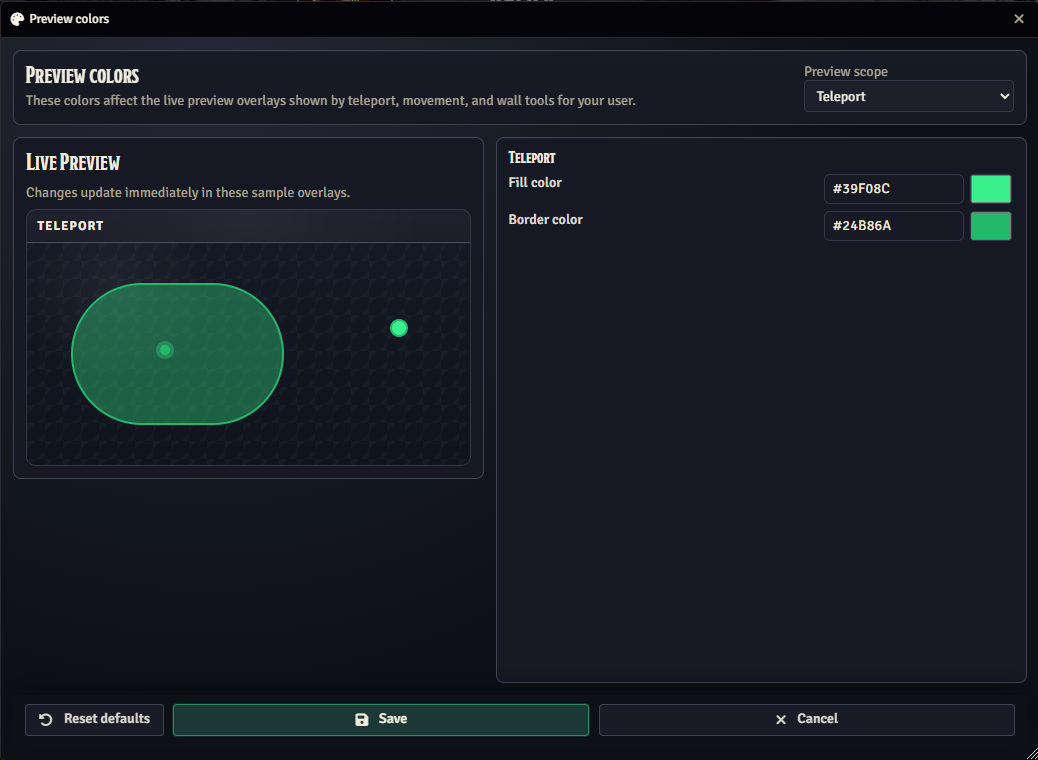

per-user preview color settings for teleport, movement, and wall overlays
module settings shortcuts for the wiki, support links, catalog, migration tools, and preview colors

Built-In Activity Types

Activity	Use it for	Main configuration	Important notes
SC Sound	Play an audio file after the activity is used.	Audio file, Playback, and Volume.	Broadcasting to Everyone requires a GM. Non-GM use falls back to local playback.
SC Macro	Run a selected world macro or inline code stored on the activity.	Macro source, World macro, and Inline code.	Inline code runs only for GMs. World macros still respect the user's macro permissions.
SC Hook	Emit a hook or call a whitelisted callback exposed by another module.	Dispatch mode, Hook name, Callback module, and Callback id.	This is primarily an integration and developer workflow, not a player-facing automation shortcut.
SC Chain	Execute other activities from the same item in order.	Activity ids, Depth limit, Continue after failure, and Stop when canceled.	Includes loop detection and nested-depth protection.
SC Conditional Chain	Branch between activities on the same item based on results, actor data, rolls, or manual choices.	First step, per-step activity, condition type, routes, and flow policies.	Steps can also be decision-only. The flow keeps using the most recent child activity result until another activity runs.
SC Contest	Resolve a contested roll between the activity user and a defender.	Defender, Tie rule, and roll configuration for both sides.	The defender can be the selected target or the same actor. Custom formulas are supported.
SC Grant	Grant configured items to the activity actor or to a targeted actor.	Recipient, granted item UUIDs, and Quantity.	Using the target flow requires exactly one target token with a valid actor.
SC Advancement	Trigger selected dnd5e advancement entries from a source item.	Source item and selected Advancement Entries.	The actor must own the source item at use time.
SC Teleport	Choose teleport targets and place their destination on the canvas.	Targets, Maximum targets, Allow self, Target range, Teleport range, destination source, offsets, and arrangement controls.	Scene movement is GM-mediated. Destination placement can be limited by range.
SC Movement	Push or pull tokens from the activity actor with a preview workflow.	Targets, Maximum targets, Snap to grid, Movement type, Distance, and Range limit.	Scene movement is GM-mediated and respects the configured range limit.
SC Wall	Create walls by placing points directly on the canvas.	Wall type, Placement range, wall limits, panel settings, facing, and block properties.	Can be restricted to GM-only creation or allow player requests through an active GM.

The built-in activities are registered under the Shattered Codex group in the activity creation dialog, but the catalog still tracks their category and source metadata separately.

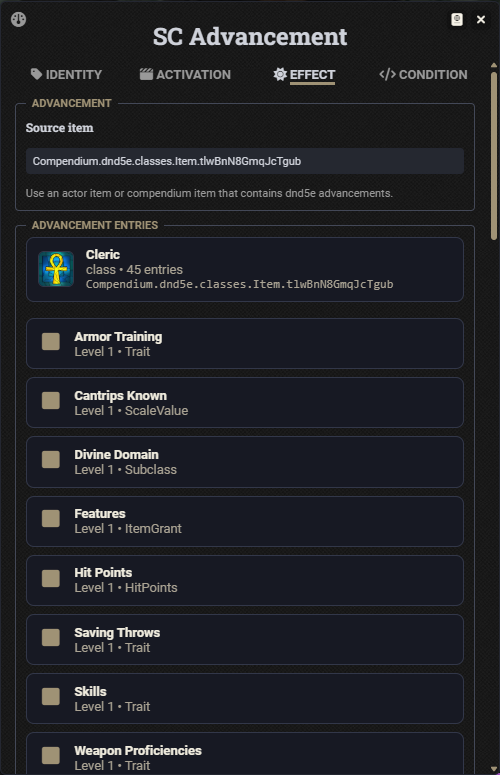

SC Advancement

Use a source item that already contains dnd5e advancements, then select the advancement entries this activity can trigger.

1 / 11

SC Conditional Chain

SC Conditional Chain is the branching version of SC Chain.

Use it when one activity should lead to different outcomes depending on what just happened. A simple example is:

roll an attack
deal damage only if the attack hits
trigger a bonus effect only if the damage total is high enough

Important scope:

a conditional chain can call only activities that already exist on the same item
every step can either run one activity or be Decision only (no activity)
decision-only steps keep using the most recent child activity result until a later step runs another activity

Before You Build The Flow

Build the child activities first. Then add SC Conditional Chain to the same item and use it as the controller.

This is the easiest order for non-technical setup:

Create the attack, damage, healing, grant, macro, or other activities you want the item to use.
Add SC Conditional Chain.
Open the chain's Effect tab.
Add your steps in the order you want to think about them.
Pick the First step.
Configure how each step decides where the flow goes next.

Main Fields

Field	What it controls	What to watch for
First step	The step where the flow begins.	If this is empty, the chain cannot run.
Step name	The label you see while editing the flow.	This is only for readability. It helps a lot once the flow has several branches.
Activity	Which activity this step runs before deciding the next route.	Choose "Decision only (no activity)" if the step should only inspect data and branch.
Decide the next step by	Which rule this step uses to branch.	The rest of the step changes depending on the condition type you pick.
Routes	Where the flow goes after the step resolves.	Routes can point to another step or to "End flow".
Flow policies	Safety rules for depth, cancellation, and child errors.	These settings affect the whole chain, not just one step.

Condition Types

Condition type	Use it when	Extra fields	Routes shown
Always continue	The step should always go to the same next step.	Next step only.	Next step
Actor property	You want to branch from actor data such as HP, spellcasting data, flags, or another deterministic value.	Actor property path, operator, and value.	When true / When false
Last activity result	You want to branch from the result of the most recent child activity.	Result path, operator, and value.	When true / When false
Roll	The chain itself should ask for a check, save, skill roll, or custom formula roll.	Roll type, ability or skill when needed, and DC.	On success / On failure
Manual choice	The user should pick the branch in a dialog.	A list of options.	One route per option

Canceling a roll or canceling the manual-choice dialog always ends the flow.

Roll Types

Roll type	What it does	When to use it
Ability check	Uses the actor's normal D&D 5e ability check workflow for the chosen ability.	Good for broad tests such as Strength or Intelligence checks.
Saving throw	Uses the actor's normal D&D 5e saving throw workflow for the chosen ability.	Use it when the branch depends on passing or failing a save.
Skill check	Uses the actor's normal D&D 5e skill check workflow for the chosen skill.	Good for flows such as Athletics contests, Stealth gates, or social checks.
Custom formula	Rolls a custom formula and posts a chat message for that roll.	Use it when a normal ability or skill roll is not enough.

The DC field accepts either a number or a deterministic formula such as 8 + @prof or 10 + @scLast.roll.dice.count. The roll succeeds when its total meets or exceeds that DC.

Last Activity Result

Last activity result means the result from the most recent step that actually ran an activity.

That rule has two important consequences:

if a step is Decision only (no activity), it does not clear the previous result
several decision-only steps in a row can branch from different parts of the same stored result

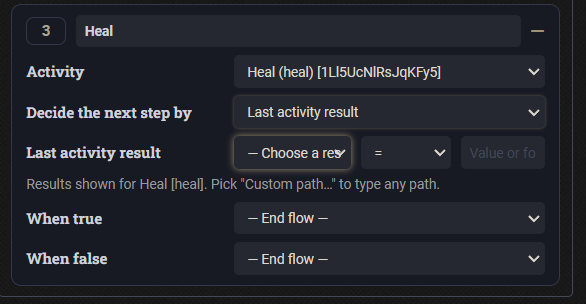

The result picker shows grouped suggestions, but you can switch to Custom path… whenever you need to type a raw path yourself.

When Decide the next step by is Last activity result, the row is made of three parts:

Field	What it does	Examples
Result	Chooses which stored value to inspect.	Attack hit, Roll total (all rolls), Grant check passed, Contest winner.
Operator	Compares the stored value against the value field.	=, ≠, >, ≥, <, ≤, includes
Value	The expected value for the comparison.	10, true, false, radiant, @abilities.con.mod, @scLast.roll.sum

What the picker supports:

for known result types such as attacks, damage or healing rolls, sc-grant, and sc-contest, the picker can suggest the most useful grouped paths
Custom path… lets you type any raw path, such as roll.totals.1 or roll.dice.values.2
the Value field accepts numbers, true or false, text, and deterministic formulas
includes works on text and lists, so it is useful for cases like tags, damage types, or text fragments

Result Path Reference

Use these paths when you need something more specific than the first suggested options.

For custom or unsupported activity types, only the fields that activity really records will return a value. If a path does not exist in the result, the chain cannot evaluate it.

General Paths

These are the most common fields and are available on every tracked result.

Shown as	Path	What it means
Result kind	kind	What the last activity produced, such as attack, damage, healing, grant, or contest.
Was a success	success	True when the activity succeeded.
Was a failure	failure	True when the activity failed.
Main total	total	The main total from the result, when one exists.
Was a critical	critical	True when the main roll was a critical.
Was a fumble	fumble	True when the main roll was a fumble or natural 1.
Target number (DC or AC)	target	The DC or armor class the main roll was compared against.
Was canceled	canceled	True when the activity was canceled before finishing.
Source activity id	sourceActivity.id	Internal id of the activity that produced the result.
Source activity type	sourceActivity.type	Type of the activity that produced the result.
Source activity name	sourceActivity.name	Display name of the activity that produced the result.
Source item id	sourceActivity.itemId	Id of the item that owns the source activity.
Source item UUID	sourceActivity.itemUuid	UUID of the item that owns the source activity.
Source actor UUID	sourceActivity.actorUuid	UUID of the actor that used the source activity.
Chat message id	use.messageId	Id of the chat message created by the activity, when one exists.
Updates applied	use.updateCount	How many document updates the activity applied.
Effects created	use.effectCount	How many active effects the activity created.
Templates placed	use.templateCount	How many measured templates the activity placed.

Roll Paths

These are the most useful fields for attack, damage, healing, save, and grant-check style results.

Shown as	Path	What it means
Roll total (first roll)	roll.total	Total of the first roll, including modifiers.
Roll total (all rolls)	roll.sum	Sum of every roll made by that activity.
Total of roll #1	roll.totals.0	Total of the first individual roll. Use roll.totals.1, .2, and so on for later rolls.
Number of rolls	roll.count	How many separate rolls were made.
Roll succeeded	roll.success	True when the roll met its target number.
Roll failed	roll.failure	True when the roll missed its target number.
Roll was a critical	roll.critical	True when the roll was a critical.
Roll was a fumble	roll.fumble	True when the roll was a fumble.
Roll target number	roll.target	The DC or AC used for that roll.
Roll formula	roll.formula	The formula that was rolled, such as 1d20 + 5.
Ability used	roll.ability	Ability key used by the roll, such as str or dex.
Skill used	roll.skill	Skill key used by the roll, such as ath or ste.
Tool used	roll.tool	Tool key used by the roll when the workflow records one.

Individual Dice Paths

These fields inspect the kept dice only. Discarded dice from advantage, rerolls, and similar effects are ignored.

Shown as	Path	What it means
Dice total (no modifiers)	roll.dice.total	Sum of the dice only, without flat bonuses.
Number of dice	roll.dice.count	How many kept dice were recorded across all rolls.
First die value	roll.dice.values.0	Face rolled on the first kept die. Use .1, .2, and so on for later dice.
Highest die	roll.dice.max	Highest kept die result.
Lowest die	roll.dice.min	Lowest kept die result.

Attack Paths

Use these when the previous child activity is an attack activity.

Shown as	Path	What it means
Attack hit	attack.hit	True when the attack hit its target or rolled a critical.
Attack missed	attack.miss	True when the attack missed.
Attack roll total	attack.total	Total of the attack roll, including modifiers.
Critical hit	attack.critical	True when the attack roll was a critical.
Attack fumble	attack.fumble	True when the attack roll was a fumble.
Target armor class	attack.target	Armor class the attack was compared against for a single target.

Grant Paths

Use these when the previous child activity is SC Grant.

Shown as	Path	What it means
Grant check passed	activity.checkPassed	True when the grant's gating check succeeded.
Grant check DC	activity.check.dc	DC used by the grant check.
Grant check total	activity.check.total	Total rolled for the grant check.
Documents created	activity.createdCount	How many documents the grant created.
Documents updated	activity.updatedCount	How many documents the grant updated.
Target actor UUID	activity.actorUuid	UUID of the actor who received the grant.
Activity canceled	activity.canceled	True when the grant was canceled before finishing.
Cancel reason	activity.reason	Why the grant canceled, such as missing actor or check-canceled.

Contest Paths

Use these when the previous child activity is SC Contest.

Shown as	Path	What it means
Contest winner	activity.winner or contest.winner	Who won: initiator, defender, or empty on a tie.
Contest tied	activity.tied or contest.tied	True when the contest ended in a tie.
Contest attempt number	activity.attempt	How many attempts were made, including a reroll on ties.
Initiator roll total	contest.initiator.total	Total rolled by the initiator.
Initiator actor UUID	contest.initiator.actorUuid	UUID of the initiator's actor.
Initiator token UUID	contest.initiator.tokenUuid	UUID of the initiator's token.
Defender roll total	contest.defender.total	Total rolled by the defender.
Defender actor UUID	contest.defender.actorUuid	UUID of the defender's actor.
Defender token UUID	contest.defender.tokenUuid	UUID of the defender's token.

Using @scLast In Formulas

The previous result is also exposed to formulas as @scLast.

That is useful when a later roll should reuse the number produced by an earlier step. A common example is a heal or bonus-damage activity that copies the previous damage total.

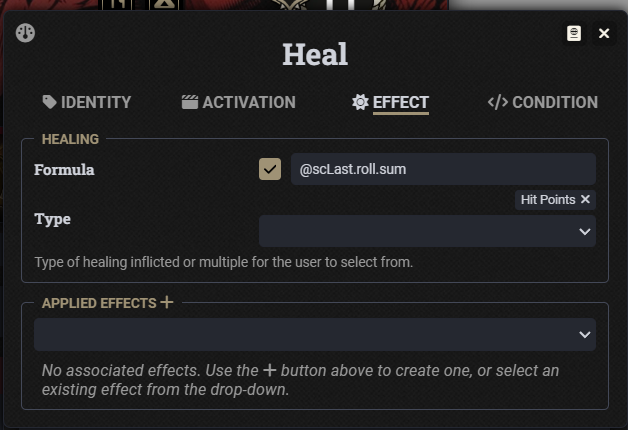

This heal formula uses @scLast.roll.sum, so it can read the total rolled by the previous step.

Practical formula notes:

@scLast.roll.sum is the safest way to reuse the previous total across multi-part rolls
@scLast.attack.hit and other booleans resolve as 1 or 0 inside formulas
@scLast by itself resolves to the previous main numeric total when one is available

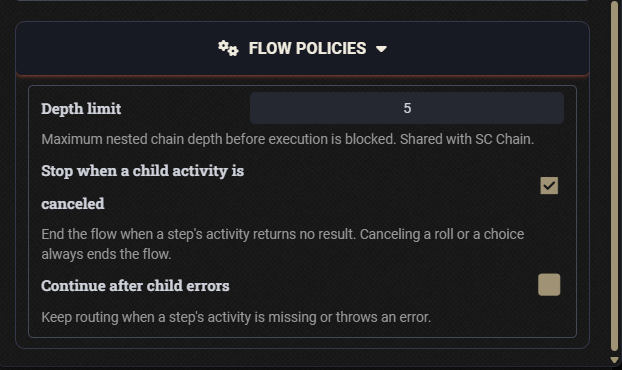

Flow Policies

The collapsible Flow policies section controls global safety rules for the chain.

These policies affect the whole chain, not just the currently selected step.

Policy	What it does	Important detail
Depth limit	Stops execution when the chain goes deeper than the configured nested limit.	This limit is shared with SC Chain.
Stop when a child activity is canceled	Ends the chain if a step's activity returns no result.	This does not change manual-choice or roll cancellation. Those always end the flow.
Continue after child errors	Keeps routing even if a child activity is missing or throws an error.	Leave this off unless you intentionally want a fallback branch after a broken child step.

Example Flow: Attack, Then Damage, Then Reuse The Damage Total

This is a practical setup for a non-technical item builder:

Create an Attack activity on the item.
Create a Damage activity on the same item.
Create a Heal or bonus effect activity that uses @scLast.roll.sum in its formula if you want it to copy the previous damage total.
In SC Conditional Chain, make the first step run Attack and branch on Last activity result with Attack hit = true.
Send the true route to a Damage step and the false route to End flow.
After Damage, either continue directly to another step or add a new branch that checks roll.sum, roll.dice.max, or any other value you need.

Activity Creation Flow

SC - More Activities keeps the normal dnd5e activity workflow intact and extends the creation dialog instead of replacing it.

When supported activity types are present, the dialog is grouped into:

D&D 5e for native activity types
Shattered Codex for the built-in SC activity set
External for third-party modules that register through the SC registry

This matters for both users and builders:

GMs can distinguish native types from SC or third-party additions
module authors can register external activity groups without writing directly into CONFIG.DND5E.activityTypes
disabled activity types are filtered out of creation and blocked from use

The creation dialog keeps native D&D 5e types visible, then adds a separate Shattered Codex group for the built-in SC activity set.

Module Settings

From Configure Settings > Module Settings > SC - More Activities, the module adds visible settings and menus for both GM administration and personal preview preferences.

Setting or menu	Scope	What it does
Debug logging	Client	Logs lifecycle and diagnostic messages to the browser console for your user.
Migration backup retention	World, GM	Controls how many migration backups are stored in world settings. Default: 3. Range: 1 to 10.
Activity catalog	World, GM	Opens the registered activity catalog and diagnostics window.
More Activities migration	World, GM	Opens the preview, apply, export, and restore workflow for legacy more-activities data.
Preview colors	Client	Opens the per-user color configuration for teleport, movement, and wall overlays.
Documentation	World, GM	Opens the wiki page for this module from inside Foundry.
Support the developer	World, GM	Opens the Shattered Codex Patreon support link.

The module also stores hidden world or client data for disabled activity types, preview colors, and migration backups. Those are managed through the UI and are not intended for direct manual editing.

Activity Catalog

The Activity Catalog is the GM-facing control center for registered activity types.

It includes:

summary cards for Registered, D&D Ready, Rejected, and Warnings
filters for search, category, status, and availability
separate sections for Registered Activities, Rejected Registrations, and Warnings
actions to Refresh, Copy report, Clear filters, and open Migration

Availability states are important:

Active means the activity type is available for creation and use
Disabled means the GM has blocked that type for the world
Unavailable means the type is not in a state that can be enabled for use

Only activity types that successfully reach the D&D-ready state can be toggled for world use. This makes the catalog useful both as a user control panel and as a diagnostic report for module integrations.

The catalog combines registration state, lifecycle metadata, capability markers, and per-type availability controls in one GM-facing window.

Preview Colors

The Preview colors menu is a client-scoped preference, so each user can pick their own overlay colors without changing the world for everyone else.

It is used by the canvas-oriented workflows:

SC Teleport
SC Movement
SC Wall

The menu includes:

separate sections for Teleport, Movement, and Wall
Fill color and Border color controls
a Live Preview area
reset and save actions

These colors affect preview overlays only. They are not an activity authoring setting and they do not change the underlying activity data.

Preview colors are saved per user, so one GM can change overlay colors without changing the world for everyone else.

Migration from More Activities

SC - More Activities ships with an explicit migration flow for the legacy more-activities module.

The migration window is GM-only and split into four tabs:

Overview
Preview
Apply
Backups

Recommended workflow:

Keep the legacy module enabled only long enough to inspect or migrate old data.
Open More Activities migration from module settings.
Run Preview first.
Review convertible and blocked entries.
Use Apply migration only after the preview looks correct.
Export the preview or final report if you need a record.
Use Restore latest backup if you need to roll back the last migration.

Important limits:

migration does not run automatically
a preview is required before apply
migration backups are stored in world settings
some blocked or partially compatible legacy entries may still need manual cleanup after conversion
the module warns when the legacy more-activities module is still active

The preview report makes it clear which legacy entries can be converted, which SC type they map to, and what still needs manual review.

Developer Registration API

If you are building another module, register activity types through the SC registry instead of mutating CONFIG.DND5E.activityTypes directly.

Public API access:

game.modules.get("sc-more-activities")?.api
globalThis.ShatteredCodex.activities for the published activities API

Main lifecycle hooks:

sc-more-activities.registerActivities
sc-more-activities.registryLocked
sc-more-activities.apiReady
sc-more-activities.activityRegistered
sc-more-activities.activityAvailabilityChanged
sc-more-activities.activityUseStart
sc-more-activities.activityUseComplete
sc-more-activities.activityUseError

Registration timing:

register during Hooks.on("sc-more-activities.registerActivities", ...)
late registrations are rejected after the registry locks during initialization
if you need the final published API object, listen for sc-more-activities.apiReady

Minimum registration contract:

moduleId
type
label
hint
icon
documentClass

Your documentClass must provide:

static metadata.type that matches the registered type
static availableForItem(...)
static localize(...)

Minimal example:

Hooks.on("sc-more-activities.registerActivities", (activities) => {
  activities.registerType({
    moduleId: "my-module",
    type: "my-module-ignite",
    label: "MYMODULE.Activity.Ignite.Label",
    hint: "MYMODULE.Activity.Ignite.Hint",
    icon: "modules/my-module/icons/ignite.svg",
    documentClass: MyIgniteActivity,
  });
});

The public activities API also exposes helper methods such as:

listTypes()
listTypeAvailability()
setTypeEnabled(type, enabled)
getRegistrationReport()
createActivityOnItem(item, type, data, options)

Developer Example: SC Simple Sockets

If you want a concrete external-module example, SC - Simple Sockets is the best reference currently in the Shattered Codex module set.

It does not patch sc-more-activities directly. Instead, it keeps the entire integration inside its own module and registers two external activity types when both modules are active:

sc-socket-slot
sc-socket-extraction

This example focuses on sc-socket-slot, because it shows the full lifecycle for a custom activity type.

What Files The Example Uses

File	Role in the integration
`scripts/main.js`	Imports the integration and calls `ScMoreActivitiesIntegration.register()` during module startup.
`scripts/core/integrations/sc-more-activities/ScMoreActivitiesConstants.js`	Defines hook names, type ids, group metadata, query id, timeout, and icon paths.
`scripts/core/integrations/sc-more-activities/ScMoreActivitiesIntegration.js`	Listens to the registration hook, registers types, exposes GM-mediated query handlers, and dispatches socket mutations.
`scripts/core/integrations/sc-more-activities/activities/socket-slot/ScMoreActivitiesSocketSlotActivity.js`	Defines the activity document class and its `use()` behavior.
`scripts/core/integrations/sc-more-activities/activities/socket-slot/ScMoreActivitiesSocketSlotActivityData.js`	Defines the activity schema stored on the item.
`scripts/core/integrations/sc-more-activities/activities/socket-slot/ScMoreActivitiesSocketSlotActivitySheet.js`	Extends the activity sheet and prepares UI context for the custom effect tab.
`scripts/core/integrations/sc-more-activities/activities/socket-slot/ScMoreActivitiesSocketSlotActivityService.js`	Runs the real workflow after `super.use()` succeeds.
`templates/integrations/sc-more-activities/socket-slot-effect.hbs`	Renders the custom form fields shown on the activity sheet.

How The Bootstrap Works

SC - Simple Sockets loads the integration from its own scripts/main.js and registers it at startup:

import { ScMoreActivitiesIntegration } from "./core/integrations/sc-more-activities/ScMoreActivitiesIntegration.js";

ScMoreActivitiesIntegration.register();

That register() method does two jobs:

It listens to sc-more-activities.registerActivities.
It registers a query handler during init so socket mutations can be routed through an active GM when needed.

This is important because the integration owns both the activity definition and the mutation flow. The external module is responsible for its own runtime behavior.

The Real Registration Call

Inside ScMoreActivitiesIntegration.js, SC - Simple Sockets registers sc-socket-slot like this:

return activitiesApi.registerType({
  moduleId: Constants.MODULE_ID,
  type: SC_MORE_ACTIVITIES_ACTIVITY_TYPES.SOCKET_SLOT,
  label: "SCSockets.Integrations.ScMoreActivities.SocketSlot.Title",
  hint: "SCSockets.Integrations.ScMoreActivities.SocketSlot.Hint",
  icon: SC_MORE_ACTIVITIES_ICONS.SOCKET_SLOT,
  documentClass: ScMoreActivitiesSocketSlotActivity,
  dataModel: ScMoreActivitiesSocketSlotActivityData,
  sheetClass: ScMoreActivitiesSocketSlotActivitySheet,
  configurable: true,
  category: "sockets",
  ui: {
    scope: "external",
    group: "sockets",
    groupId: SC_MORE_ACTIVITIES_GROUP.id,
    groupLabel: SC_MORE_ACTIVITIES_GROUP.label,
    groupIcon: SC_MORE_ACTIVITIES_GROUP.icon,
    groupOrder: SC_MORE_ACTIVITIES_GROUP.order,
    order: 140
  },
  tags: ["sockets", "slot", "inventory"],
  compatibility: {
    dnd5e: "5.x",
    scMoreActivities: { moduleId: "sc-more-activities", required: true },
    scSimpleSockets: { moduleId: "sc-simple-sockets", required: true }
  },
  templates: [
    "modules/sc-simple-sockets/templates/integrations/sc-more-activities/socket-slot-effect.hbs"
  ],
  ownership: {
    execute: "item-owner",
    hostItem: "activity-item",
    mutation: "gm-mediated"
  },
  source: Constants.MODULE_ID
});

Why this registration is useful:

ui.scope: "external" places the type in the external registration flow
groupId, groupLabel, and groupOrder create a module-specific activity group in the create dialog
dataModel, sheetClass, and templates turn the type into a configurable authoring experience instead of a bare runtime document
ownership.mutation: "gm-mediated" matches the real workflow, because socket mutations may need GM execution

The Activity Class

The activity class extends the standard dnd5e activity mixin and connects the registered type id to the custom schema, metadata, availability check, and runtime execution:

export class ScMoreActivitiesSocketSlotActivity extends dnd5e.documents.activity.ActivityMixin(
  ScMoreActivitiesSocketSlotActivityData
) {
  static metadata = Object.freeze(
    foundry.utils.mergeObject(super.metadata, {
      type: SC_MORE_ACTIVITIES_ACTIVITY_TYPES.SOCKET_SLOT,
      img: SC_MORE_ACTIVITIES_ICONS.SOCKET_SLOT,
      title: "SCSockets.Integrations.ScMoreActivities.SocketSlot.Title",
      hint: "SCSockets.Integrations.ScMoreActivities.SocketSlot.Hint",
      sheetClass: ScMoreActivitiesSocketSlotActivitySheet
    }, { inplace: false })
  );

  static availableForItem(item, ...args) {
    const base = typeof super.availableForItem === "function"
      ? super.availableForItem(item, ...args)
      : true;
    return base && ScMoreActivitiesIntegration.isTypeEnabled(
      SC_MORE_ACTIVITIES_ACTIVITY_TYPES.SOCKET_SLOT
    );
  }

  async use(usage = {}, dialog = {}, message = {}) {
    const results = await super.use(usage, dialog, message);
    if (results === undefined) return results;
    return ScMoreActivitiesSocketSlotActivityService.execute(this, { usage, dialog, message, results });
  }
}

The pattern to copy into your own module is:

Extend dnd5e.documents.activity.ActivityMixin(...).
Put the registered type id into static metadata.type.
Route availability through availableForItem(...).
Call super.use(...) first.
Hand off the actual side effects to a dedicated service class.

The Data Model

ScMoreActivitiesSocketSlotActivityData extends dnd5e.dataModels.activity.BaseActivityData and stores all custom fields under slot.

Real schema fields in the example include:

slot.operation
slot.name
slot.color
slot.cursorImage
slot.description
slot.condition
slot.targetCondition
slot.hidden
slot.deleteGemOnRemoval
slot.ignoreMaxSockets

That structure is worth copying because it keeps custom activity state grouped under one schema branch instead of scattering unrelated top-level fields.

The Sheet and Template

ScMoreActivitiesSocketSlotActivitySheet extends dnd5e.applications.activity.ActivitySheet and injects a custom effect-part template:

static PARTS = {
  ...super.PARTS,
  effect: {
    template: TEMPLATE_PATH,
    templates: [...super.PARTS.effect.templates]
  }
};

That template is templates/integrations/sc-more-activities/socket-slot-effect.hbs, and it renders the actual authoring controls for:

slot operation
slot name and color
cursor image
description
condition code
target condition code
behavior toggles such as hidden, delete on removal, and ignore socket limit

Use this pattern when your custom activity needs real item-authoring UI instead of a small number of primitive fields.

The Runtime Service

The actual socket behavior does not live in the activity class. It lives in ScMoreActivitiesSocketSlotActivityService.

That service decides whether the configured operation is:

add a slot to a selected item
remove one empty slot from the host item

The service also validates the target condition, launches the slot-picker UI when needed, and hands the mutation back to ScMoreActivitiesIntegration.

That separation matters:

the activity class stays small and predictable
the data model only describes stored state
the service owns workflow branching, validation, dialogs, and user feedback

How GM-Mediated Execution Works

SC - Simple Sockets is a strong example because it shows how to handle mutations that may require GM authority.

Inside ScMoreActivitiesIntegration.js, the integration:

Builds a request payload with activityUuid, itemUuid, operation, and requestUserId.
Executes directly when the current user is a GM or already has socket-edit permission.
Falls back to an active GM query using a registered query id when direct execution is not allowed.
Resolves the request on the GM side and turns the result into a normalized success or failure object.

This is the concrete pattern to follow when your custom activity mutates actors, items, scenes, or other documents that should not be changed blindly by every player client.

Minimal Blueprint For Your Own Module

If you are building a new external activity, the smallest practical file set is:

code

scripts/main.js
scripts/integrations/sc-more-activities/MyIntegration.js
scripts/integrations/sc-more-activities/MyActivity.js
scripts/integrations/sc-more-activities/MyActivityData.js
scripts/integrations/sc-more-activities/MyActivitySheet.js
scripts/integrations/sc-more-activities/MyActivityService.js
templates/integrations/sc-more-activities/my-activity-effect.hbs

Build it in this order:

Register an integration class from scripts/main.js.
Listen to sc-more-activities.registerActivities.
Call activitiesApi.registerType(...).
Create a document class with metadata, availableForItem(...), and use(...).
Add a data model for your stored fields.
Add a sheet class and Handlebars template for configuration.
Move the actual side effects into a service class.
Add GM-mediated dispatch only if your workflow really needs it.

When To Copy This Pattern

Use the sc-simple-sockets structure when your activity:

needs custom authoring fields
performs complex runtime logic after super.use(...)
may require GM-mediated document changes
belongs to a module-specific activity group in the create dialog
should stay fully owned by the integrating module instead of by sc-more-activities

Notes and Limits

This module supports only the dnd5e system.
It extends native activities instead of replacing them.
World macros, inline code, hooks, and callbacks still follow their own permission and ownership limits.
Canvas actions such as teleport, movement, and wall placement rely on GM-mediated scene updates.
The migration workflow is explicit by design, which is safer than an automatic conversion but still requires review before apply.
